2 Divide and Conquer

• Counting inversions
  • Definition
  • How Divide and Conquer tackles inversions
  • Proving time complexity of MergeSort
    • Proof
• Finding Closest Pairs
  • D&C
    • Key to Divide and Conquer algorithm for Closest Pairs
  • Time Complexity
• Matrix Multiplication
  • Strassens Algorithm
    • Complexity
    • Q. How good does it get?
• Binary Multiplication
• Complexity when only splitting and multiplying three times
• Master theorem

• In tutorial

• Split problem into smaller subproblems (usually equal size)

• Solve each subproblem
• Combine solutions (usually in linear time)
• Often results in reduction of brute force, O(n2) algorithm to O(n log n) time

Counting inversions¶

We use this method to measure how similar two lists are.

Definition¶

List A: \(a_1, a_2, \dots, a_n\) There is an inversion between item \(i\) and \(j\) if \(i < j\) but \(a_i > a_j\).

There can be in total \(O(n^2)\) if we look at all nodes paired with all other nodes. By counting the inversions, we can obtain a measure of "sortedness" of a list.

How Divide and Conquer tackles inversions¶

By dividing a list in half, we only need to compare inversions in each smaller list. This algorithm will still take \(O(n^2)\)! To reduce it to \(O(n log n)\), we must sort the list after dividing in half.

Proving time complexity of MergeSort¶

Want to show that: \(T(n) = 2(Tn/2) + O(n) + O(1) \in O(n log n)\)

Proof¶

Or you could use the masters theorem, maybe it would be helpful to memorize this.

Finding Closest Pairs¶

For example, wanting to find the closest pair of points in an XY plane.

The brute force solution is \(O(n^2)\) when comparing every single point with every other point.

D&C¶

• Draw a line to separate the points, and compare closest points in each half.
• Combine by comparing every point from one side with the other
• Return the closest of the three sets of points

Key to Divide and Conquer algorithm for Closest Pairs¶

You only need to check the 11 points below your starting point within the white lines.

• This means that the number of points youre checking is constant.
• There is no way you can have one point per box, because they must be \(\delta\) apart and each box is size \(\delta/2\) by \(\delta/2\)

Time Complexity¶

Same kind of proof as #Proving time complexity of MergeSort.

Matrix Multiplication¶

Not really tested or need to know

The brute force algorithm would take \(O(n^3)\)

Trying to divide the matrices into n/2 blocks doesn't actually save any time.

Strassens Algorithm¶

Reduce 8 multiplications to 7. Increase 4 additions to 18.

Complexity¶

Q. How good does it get?¶

A. Best known algorithms:

• O(2.521813)(12/1979)
• O(2.521801)(01/1980)
• O(2.376)(1987)

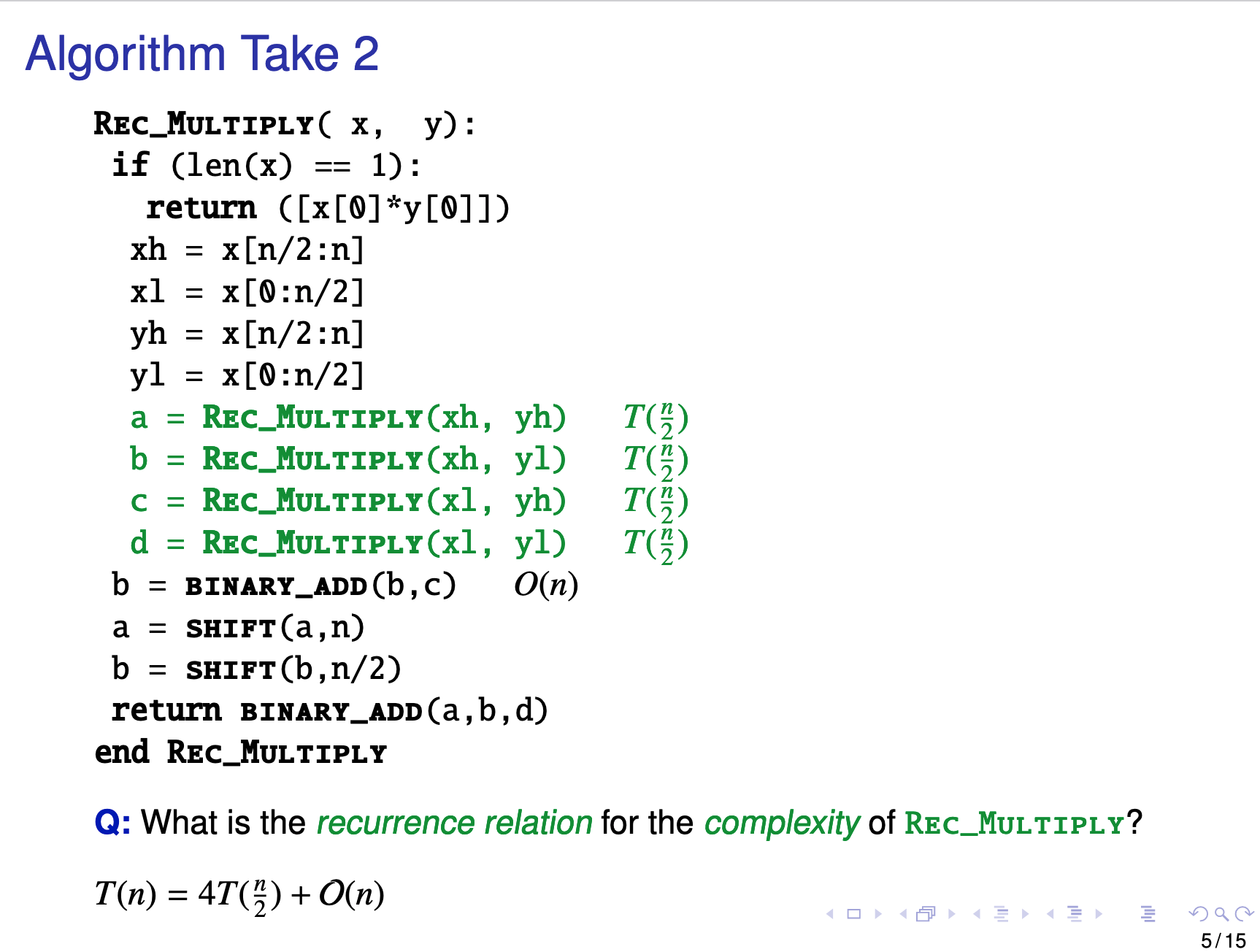

Binary Multiplication¶

Where the worst case complexity is \(O(n^2)\)

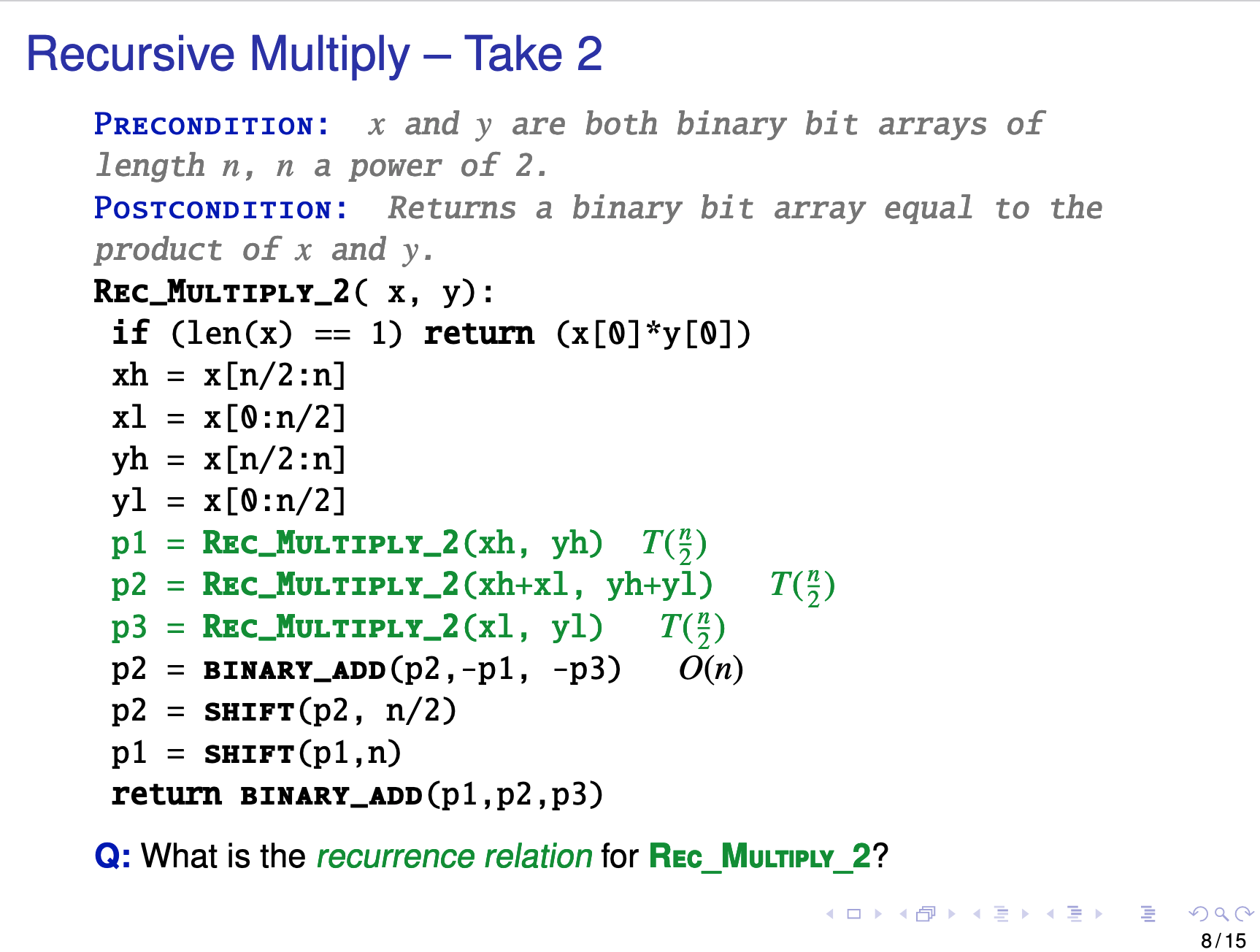

Complexity when only splitting and multiplying three times¶

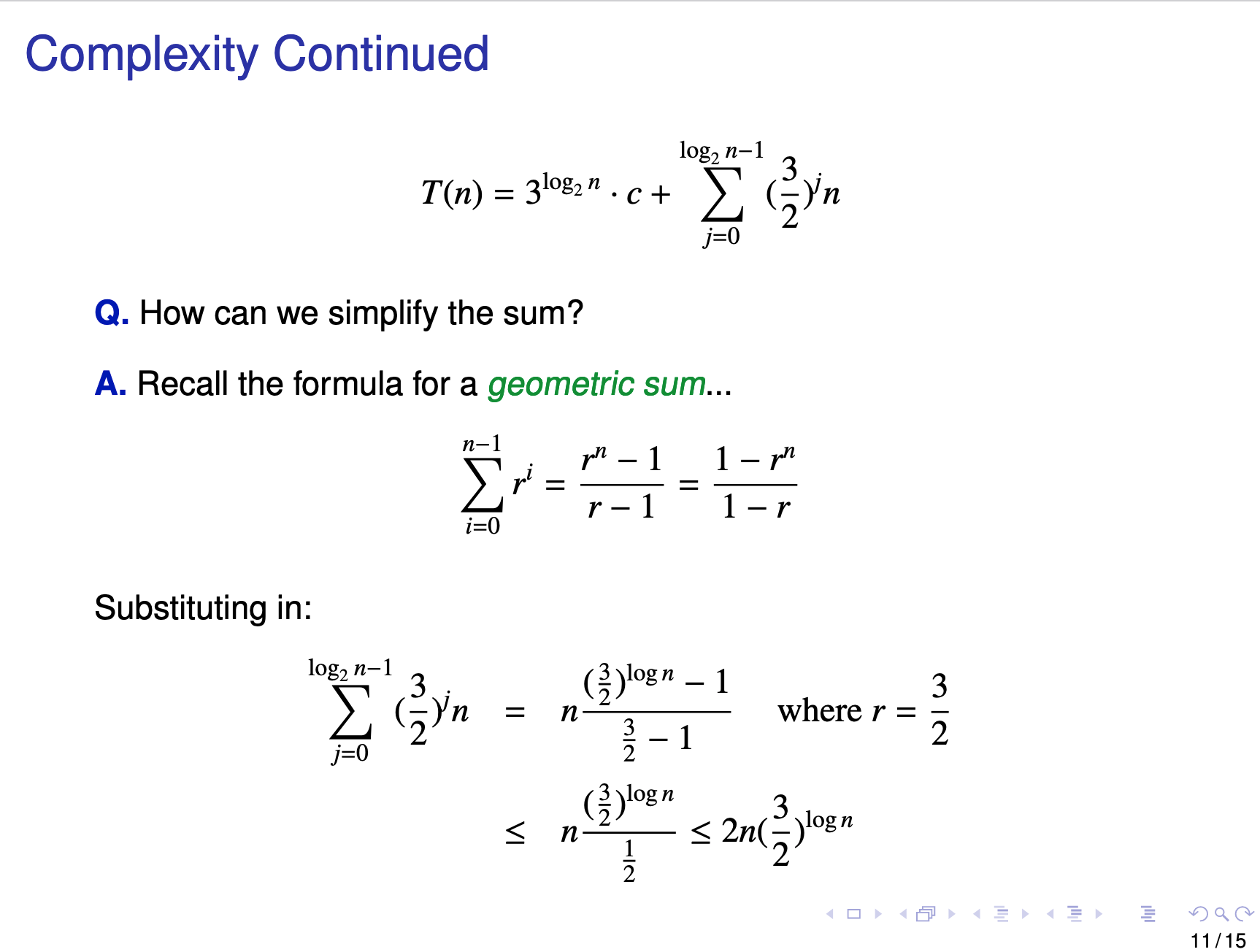

But replace the \(n-1\) in the geometric sum with \(k\), which is \(log_2 (n-1)\)

Master theorem¶

Useless if it's not in the correct format \(aT(\frac{n}{b}) + n^c\)

Can get a bound on the floor/ceil, kinda complicated how its proved, don't need to derive ourselves by hand.

In tutorial¶

Attempt back substitution
